PCB & PCBA Manufacturing and Exporting: An Industry Whitepaper
1. Executive Summary: The Backbone of the Global Digital Economy
In the modern electronics landscape, Printed Circuit Boards (PCBs) and Printed Circuit Board Assemblies (PCBAs) form the structural and electrical backbone of virtually all digital systems. From high-speed server memory modules to precision industrial automation controllers, the complexity, reliability, and thermal resilience of the PCB substrate dictate the operational thresholds of final consumer and industrial applications.
As a premier manufacturer and exporter, VoltDRAM Semiconductor Co., Ltd. bridges the gap between state-of-the-art semiconductor component design and robust system integration. Registered between 2015 and 2018, VoltDRAM has leveraged its 320–480㎡ advanced testing and prototyping facility to deliver customized PCB manufacturing services, high-performance DRAM solutions, and bespoke PCBA services, generating an annual export revenue of USD 8–18 million. With over a decade of industry expertise, our operations are optimized to address the strict E-E-A-T requirements of international B2B procurement.
2. Technical Analysis: Substrates, High-Frequency Dynamics, and Build Topologies
Choosing the correct substrate material is paramount when laying out high-frequency circuits or designing for harsh thermal profiles. Standard FR4 has long been the industry workhorse, but modern requirements demand materials capable of managing high glass transition temperatures (Tg) and low dielectric loss.

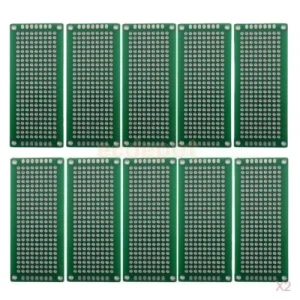

- High TG170 (Shengyi FR4): High-Tg materials are critical for preventing structural deformation during multi-stage reflow processes. When operating under thermal cycles, standard FR4 can experience board warping and delamination. Shengyi FR4 TG170 maintains its mechanical strength, offering superior reliability in multi-layer stack-ups.
- Rogers 4000 Mixed Pressure: In RF (Radio Frequency) and high-speed data transmission lines, minimizing signal attenuation is mandatory. Rogers 4000 series substrates feature extremely low dielectric constants (Dk) and dissipation factors (Df), making them suitable for mixed-pressure stacking. This hybrid board construction method pairs Rogers materials on the outer signal layers with economical FR4 on internal layers, balancing performance and material cost.

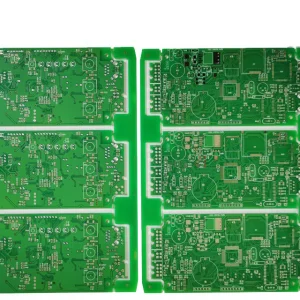

- Lead-Free HASL vs. Immersion Silver: The surface finish protects the exposed copper trace from oxidation and dictates solder joint integrity. Hot Air Solder Leveling (HASL) lead-free finish offers excellent shelf life and reworkability, whereas Immersion Silver provides a highly coplanar pad surface, which is critical for fine-pitch Ball Grid Arrays (BGAs) and SMT (Surface Mount Technology) component placements in high-density systems.
3. Factory Showcase & Process Control
A peek inside our specialized facilities showcases our focus on advanced equipment, dust-free assembly environments, and raw material tracking. VoltDRAM operates with an international footprint, combining microelectronics precision with scalable assembly logic.
4. Semiconductor Integration & Memory Module Engineering
VoltDRAM’s dual expertise in PCB fabrication and semiconductor memory layout provides a unique technological advantage. High-speed memory architectures like DDR4 and DDR5 operate at high clock speeds, rendering them highly sensitive to electromagnetic interference (EMI) and impedance mismatch.
DDR5 memory, operating at frequencies up to 5600MHz/6000MHz, shifts power management directly onto the module via a PMIC (Power Management Integrated Circuit). This transition requires specialized multi-layer PCB design featuring localized power-plane layers, tight impedance control, and precise trace-length matching to prevent skew. VoltDRAM leverages its R&D team of 60–300 engineers to release 120–450 customized variants annually, ensuring that physical designs align perfectly with JEDEC specifications.
5. Localized Applications & Industrial Solutions
VoltDRAM designs and fabricates tailored solutions for diverse global industries, adapting to localized environmental, safety, and operational specifications:
- Industrial Automation: OEM PCB processing for power supply and instrumentation applications. These boards utilize heavy copper tracking and immersion silver finishes to resist chemical corrosion and survive high physical vibrations in manufacturing hubs.

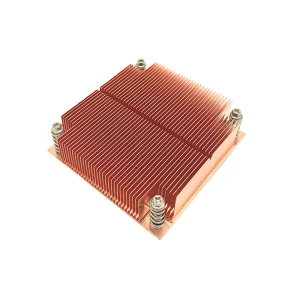

- Enterprise Datacenters & Servers: High-performance air-cooled server heat sinks (like the LGA2011 rectangular series) paired with multi-channel DDR4/DDR5 system memory modules, ensuring maximum uptime, system speed, and thermal dissipation efficiency.

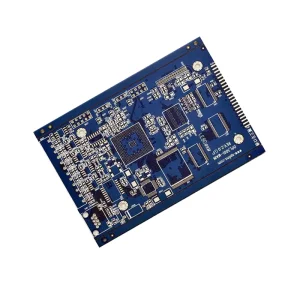

- High-End Consumer Electronics: Precision, space-constrained control boards such as high-speed hair dryer PCBA systems, utilizing high-density SMT layout architectures and custom microcontrollers.

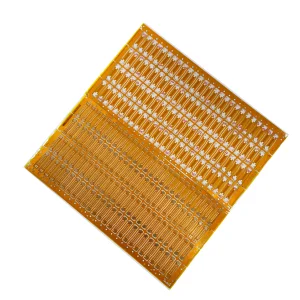

- Flexible Interfaces (FPC): Single and double-layer polyimide flexible circuits designed for high-density consumer electronics and custom keyboards, offering extreme flexibility, thermal resistance, and long bending lifetimes.
6. Technology Roadmap and Future Horizons
VoltDRAM is committed to driving innovations in substrate packaging and high-frequency routing over the next decade. Our R&D roadmap focuses on:
- Sub-100um Microvias: Developing reliable laser-drilled blind and buried microvia stackups to increase layout densities for next-gen IoT and AI devices.
- High-Speed Signal Integrity: Optimizing PCB traces to support PCIe Gen 6 and high-speed DDR5/DDR6 standards, minimizing crosstalk and signal degradation.
- Eco-Friendly Manufacturing: Expanding our lead-free HASL and organic solderability preservative (OSP) lines to help global partners meet strict European Union REACH and RoHS directives.
